测试记录可直接打印的拉力计100吨
测试记录可直接打印的拉力计100吨的英文资料.用于出口
1. Features
◆ Wireless communication and display
Wireless indicator, 5 digits LCD display with backlight, Many functions on handheld indicator 580D
Both RS232 serial port and USB port，solve most laptops without serial port problem. with the Everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions .Such as tare, zero, peak, filter setting, gravity regulation.calibration is easy through wireless indicator
◆ Two set point
Two user programmable Set-Point can be used for safety and warning applications or for
limit weighing.
◆ User-friendly design:
Cast alloy steel housing for maximum protection; water proof design, gravity
compensation; safety factor up to 4 times capacity; battery operated with low battery
indication; automatic turn off , power-saving function.
2. Main technical data
|
Accuracy Standard |
According to OIML class III |
|
Indicator Display |
25mm(1”) 5digits LCD |
|
Water Proof Class |
IP66 |
|
Zero Range |
4% F.S. |
|
Tare Range |
100% F.S. |
|
Stable Time |
≤5 seconds |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Tension link battery Life |
Continous using 50 hours after recharged |
|
Tension link battery type |
Standard 18650 Lithium battery, 3.7V/3100mAh |
|
Indicator Battery |
SC3300mAh NiH Battery. 1.2Vx6 |
|
Tension link Charger |
DC4.2V/1000mA |
|
Nominal operating Temp. |
– 10℃ ~ + 40℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Wireless Distance |
100M without obstacle |
|
Wireless Frequency |
433MHz |
3. Specification
|
MODEL |
Max. capacity (kg) |
Min. weigh (kg) |
Division (kg) |
Total display counts (n) |
|
HZ-W9-5 |
5000 |
40 |
2 |
2500 |
|
HZ-W9-10 |
10000 |
100 |
5 |
2000 |
|
HZ-W9-20 |
20000 |
200 |
10 |
2000 |
|
HZ-W9-30 |
30000 |
200 |
10 |
3000 |
|
HZ-W9-50 |
50000 |
400 |
20 |
2500 |
|
HZ-W9-100 |
100000 |
1000 |
50 |
2000 |
|
HZ-W9-150 |
150000 |
1000 |
50 |
3000 |
|
HZ-W9-200 |
200000 |
2000 |
100 |
2000 |

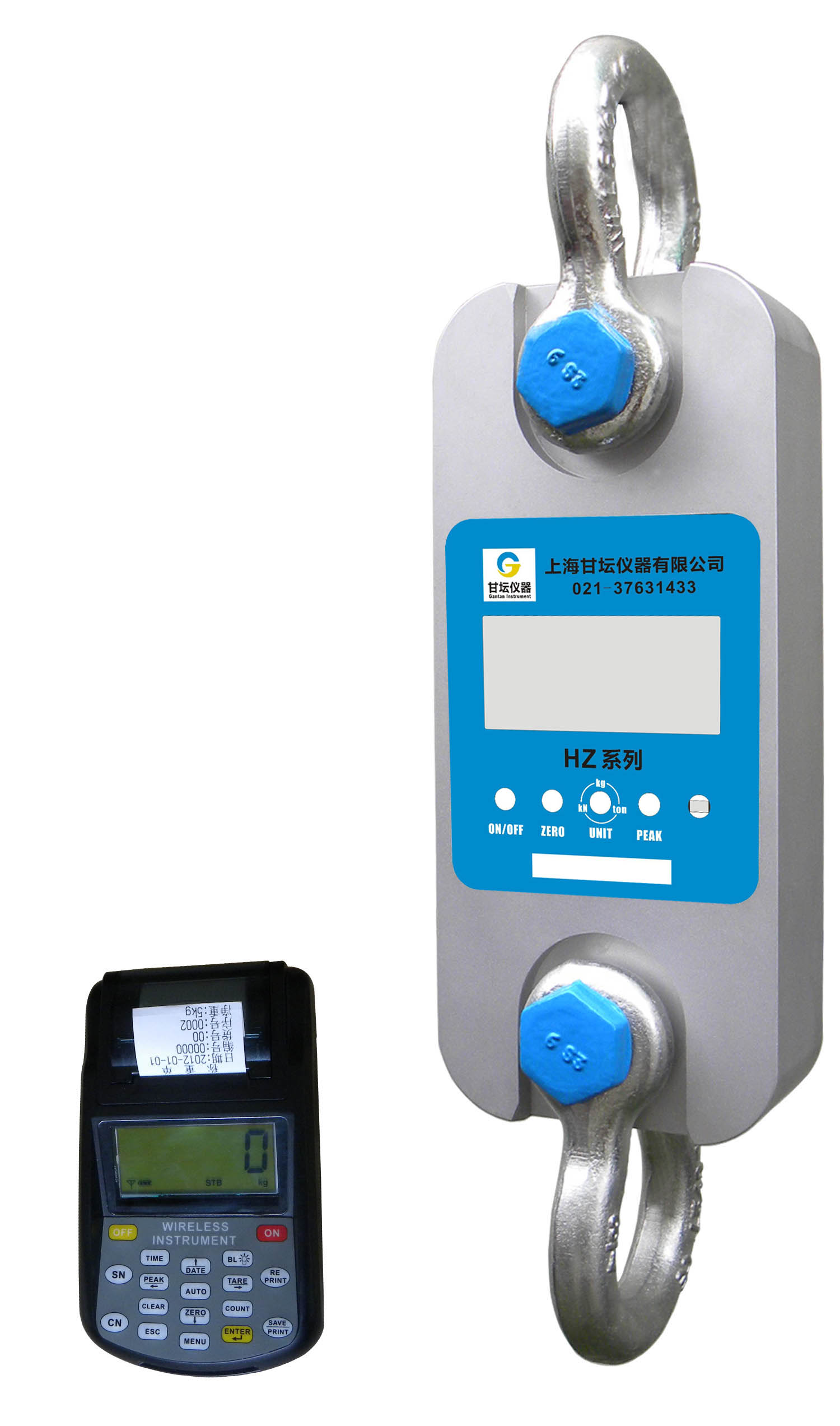

测试记录可直接打印的拉力计100吨的英文资料.用于出口外观:
